GHES Mirror Action



개요

Github Actions를 사용해서 Github Cloud에 있는 Private Repository를 Github Enterprise Server의 레포로 Mirror clone 하는 방법을 소개합니다.

Github Actions를 사용해서 자동화하는 시나리오입니다.



준비사항

Mirror Clone을 구현하기 전에 다음 준비사항이 필요합니다.



Actions Runner

Github Enterprise Server는 Github Cloud와 다르게 Actions Workflow를 실행하는 머신인 Actions Runner의 구축이 필요합니다.

Actions Runner는 크게 2가지 방식으로 구축할 수 있습니다.

  1. EC2 : EC2 기반의 Actions Runner
  2. EKS : Actions Runner Controller를 사용한 Pod 기반의 Actions Runner

제 경우 컴퓨팅 비용 절감 및 운영 자동화 측면에서 EKS 방식을 사용해서 Actions Runner를 운영하고 있습니다.



제 환경에서는 Amazon EKS 기반의 Runner를 운영하고 있습니다.

EKS 클러스터에 Actions Runner Controller를 헬름 차트로 설치했습니다.

$ helm list -n actions-runner-system
NAME                       NAMESPACE              REVISION  UPDATED                               STATUS    CHART                             APP VERSION
actions-runner-controller  actions-runner-system  40        2023-11-14 16:13:08.829636 +0900 KST  deployed  actions-runner-controller-0.23.3  0.27.4



이후 Actions Runner를 클러스터에 배포해서 사용중입니다.

$ kubectl get runner -A
NAMESPACE        NAME                            ENTERPRISE   ORGANIZATION   REPOSITORY   GROUP   LABELS                                                                                                              STATUS    MESSAGE   WF REPO   WF RUN   AGE
actions-runner   mgmt-basic-runner-zczrf-mfzdx   doge                                             ["XXXXX-MGMT-EKS-CLUSTER","m6i.xlarge","support-horizontal-runner-autoscaling","ubuntu-22.04","v2.311.0","build"]   Running                                9h
actions-runner   mgmt-cd-runner-wrftn-wxgwq      doge                                             ["XXXXX-MGMT-EKS-CLUSTER","m6i.xlarge","ubuntu-22.04","v2.311.0","deploy"]                                          Running                                10h

자세한 설치 방법이 궁금한 분들은 Actions Runner Controller 구성 페이지를 참고하세요.



구현

Mirror Clone을 받아오는 동작방식은 다음과 같습니다.

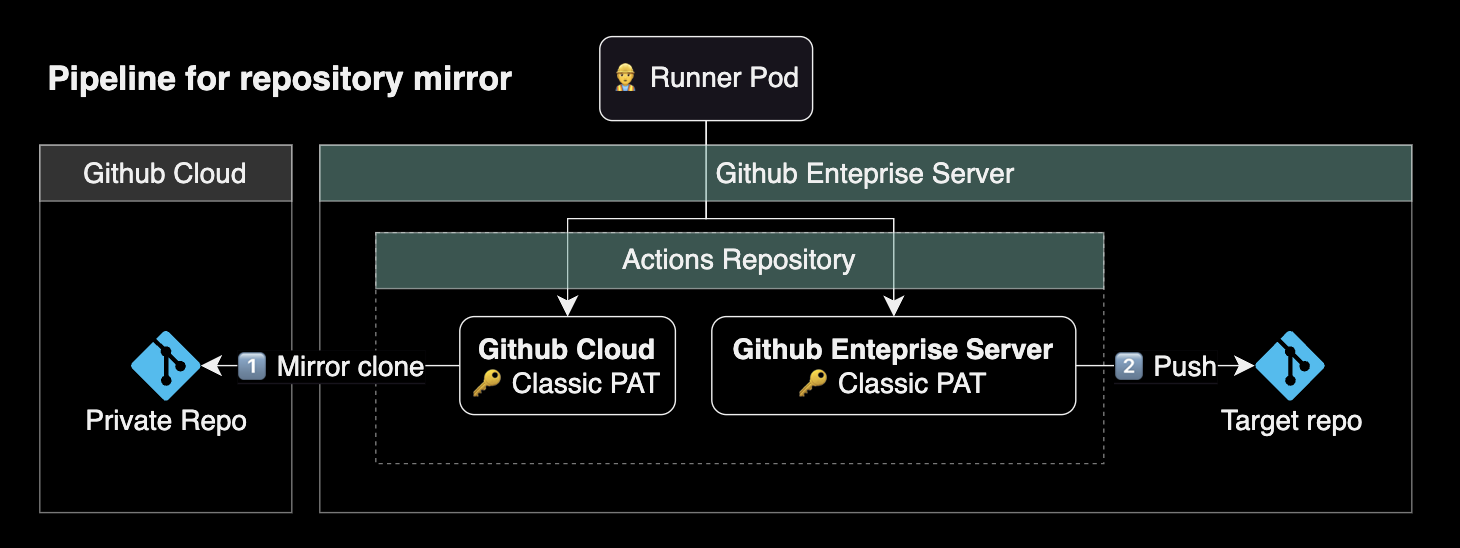

Architecture



Github Enterprise Server에서 2개의 레포를 생성합니다.

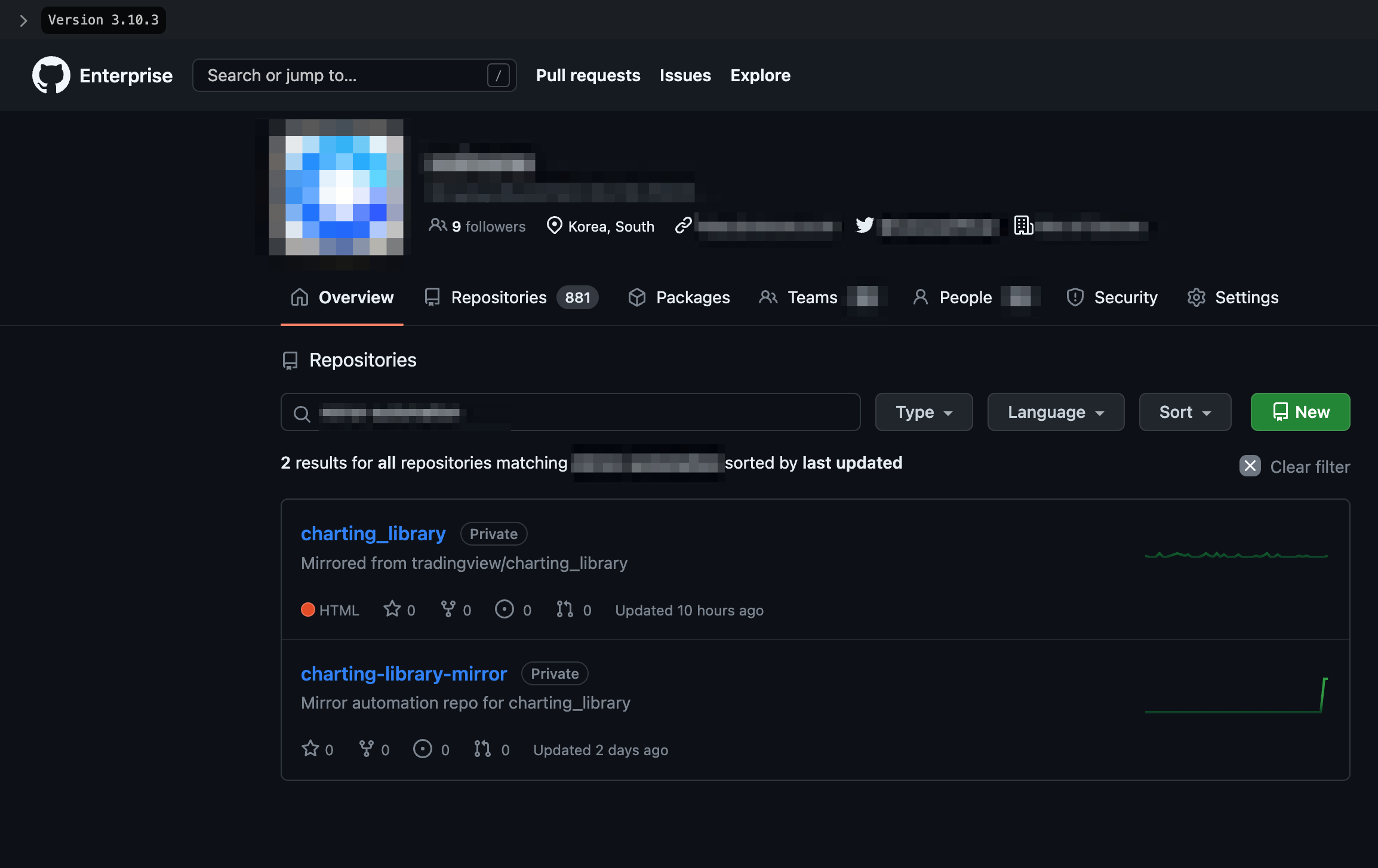

레포 생성 결과

2개의 레포는 각각 복제본 결과물을 담는 레포지터리, Actions Workflow가 실행되는 역할을 하는 레포지터리입니다.



Actions Workflow 코드입니다.

name: Mirror clone private repository from Github Cloud

on:
  # 수동으로 워크플로우를 실행할 수 있도록 함
  workflow_dispatch:

  # UTC 기준 1일 1회, 0시 0분에 실행되도록 스케줄 설정
  schedule:
    - cron: '0 0 * * *'

jobs:
  checkout_and_push:
    runs-on: [self-hosted, linux, build]

    steps:
    - name: Checkout Private Repo
      run: |
        git clone --mirror https://<GITHUB_CLOUD_USERNAME>:${{ secrets.ORG_GITHUB_CLOUD_ADMIN_PAT }}@github.com/tradingview/charting_library
        ls -alh

    - name: Push to target repository
      run: |
        cd charting_library.git
        git config user.name "github-admin"
        git config user.email "admin@doge.com"
        git remote set-url --push origin https://${{ secrets.DOGECOMPANY_ORG_GITHUB_ENTERPRISE_ADMIN_PAT }}@github-enterprise.example.com/doge/charting_library.git
        git push --mirror 2>&1 | tee push.log
      continue-on-error: true

on 키워드를 보면 크게 2가지 조건에 의해 Mirror Clone이 트리거됩니다.



Github Enterprise Server에 위치한 Mirror용 Repository에는 2개의 Actions Secret을 생성해두어야 합니다.

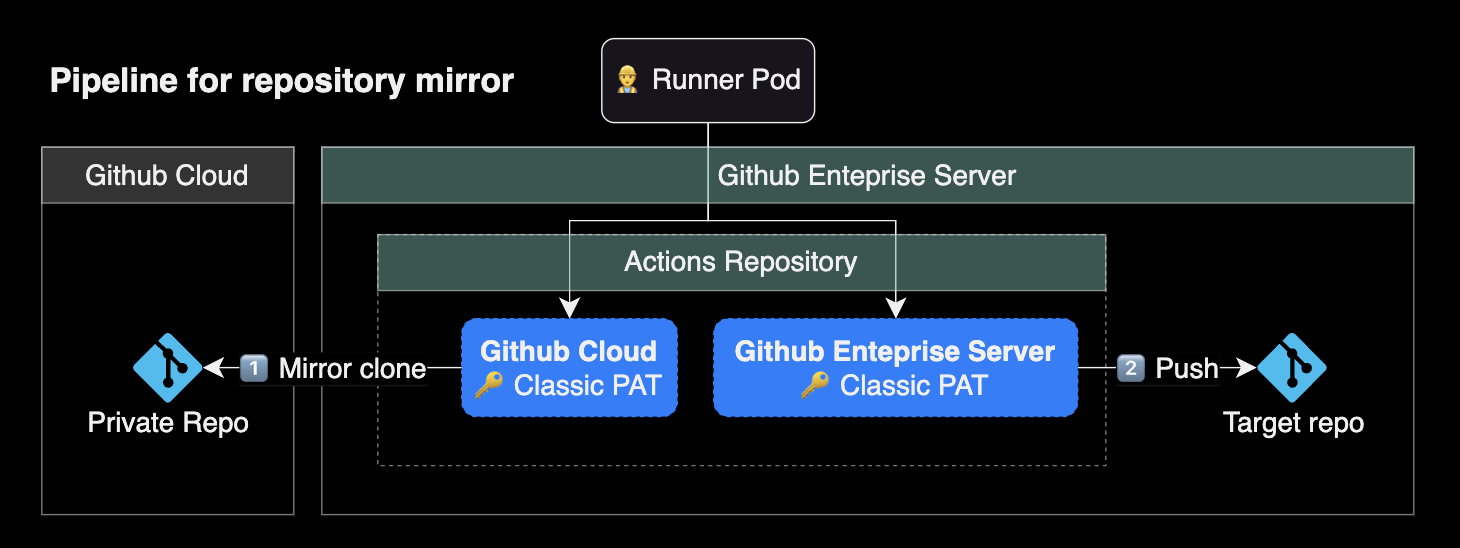

Secrets Architecture
